NSS-D
스피드 컨트롤러 · CDC 정품 — 아래 도면과 치수표에서 규격을 확인하세요. 재고·납기는 전화 주시면 바로 안내드립니다.
제품 사진

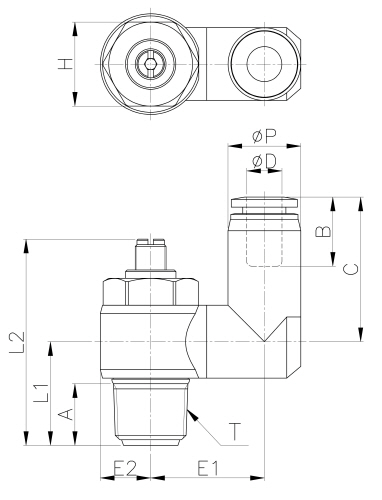

도면상세 치수표
| Model | ∅D | ∅P | T | L1 | L2(MIN) | L2(MAX) | E1 | E2 | A | B | H(Hex) | C | WEIGHT(g) | BOX(EA) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NSS 04-M5(D) | 4 | 10.5 | M5x0.8p | 9.6 | 20.4 | 22.9 | 12.3 | 5.2 | 3.6 | 14.8 | 8 | 20.3 | 9.2 | 50 |
|
|||
| NSS 04-01(D) | 4 | 10.5 | R1/8 | 15.1 | 26.7 | 31.2 | 14.3 | 7.0 | 8.2 | 14.8 | 11 | 20.3 | 19.4 | 50 |
|
|||
| NSS 04-02(D) | 4 | 10.5 | R1/4 | 18.4 | 31.3 | 37.4 | 17.8 | 9.2 | 11.0 | 14.8 | 15 | 20.3 | 36.1 | 50 |
|
|||
| NSS 06-M5(D) | 6 | 12.5 | M5x0.8p | 9.6 | 20.4 | 22.9 | 13.3 | 5.2 | 3.6 | 16.4 | 8 | 22.4 | 10.2 | 50 |
|
|||
| NSS 06-01(D) | 6 | 12.5 | R1/8 | 15.6 | 26.7 | 31.2 | 15.0 | 7.0 | 8.2 | 16.4 | 11 | 24.0 | 21.1 | 25 |
|
|||
| NSS 06-02(D) | 6 | 12.5 | R1/4 | 18.4 | 31.3 | 37.4 | 20.3 | 9.2 | 11.0 | 16.4 | 15 | 25.9 | 38.7 | 25 |
|
|||
| NSS 06-03(D) | 6 | 12.5 | R3/8 | 21.9 | 37.0 | 42.9 | 23.3 | 11.5 | 12.2 | 16.4 | 19 | 25.9 | 70.2 | 25 |
|
|||
| NSS 08-01(D) | 8 | 14.8 | R1/8 | 15.6 | 26.7 | 31.2 | 16.2 | 7.0 | 8.2 | 18.3 | 11 | 24.9 | 22.1 | 25 |
|
|||
| NSS 08-02(D) | 8 | 14.8 | R1/4 | 18.4 | 31.3 | 37.4 | 19.3 | 9.2 | 11.0 | 18.3 | 15 | 28.3 | 39.8 | 25 |
|
|||
| NSS 08-03(D) | 8 | 14.8 | R3/8 | 22.4 | 37.0 | 42.9 | 24.6 | 11.5 | 12.2 | 18.3 | 19 | 29.3 | 71.4 | 25 |
|
|||
| NSS 08-04(D) | 8 | 14.8 | R1/2 | 26.6 | 43.0 | 49.3 | 26.6 | 14.3 | 16.5 | 18.3 | 24 | 29.3 | 110.0 | 20 |
|
|||
| NSS 10-02(D) | 10 | 17.5 | R1/4 | 18.4 | 31.3 | 37.4 | 20.3 | 9.2 | 11.0 | 20.2 | 15 | 30.7 | 42.2 | 20 |
|
|||
| NSS 10-03(D) | 10 | 17.5 | R3/8 | 22.4 | 37.0 | 42.9 | 24.6 | 11.5 | 12.2 | 20.2 | 19 | 31.7 | 73.5 | 20 |
|
|||
| NSS 10-04(D) | 10 | 17.5 | R1/2 | 26.7 | 43.0 | 49.3 | 26.7 | 14.3 | 16.5 | 20.2 | 24 | 33.1 | 112.5 | 12 |
|
|||
| NSS 12-02(D) | 12 | 20.5 | R1/4 | 18.4 | 31.3 | 37.4 | 21.8 | 9.2 | 11.0 | 22.9 | 15 | 33.4 | 44.1 | 12 |
|
|||
| NSS 12-03(D) | 12 | 20.5 | R3/8 | 22.4 | 37.0 | 42.9 | 24.6 | 11.5 | 12.2 | 22.9 | 19 | 34.4 | 79.0 | 12 |
|
|||
| NSS 12-04(D) | 12 | 20.5 | R1/2 | 26.7 | 43.0 | 49.3 | 26.7 | 14.3 | 16.5 | 22.9 | 24 | 35.8 | 115.9 | 12 |
|
|||
