CDC첨단 (씨디씨뉴매틱)
NSC-G-DC
스피드 컨트롤러 · CDC 정품 — 아래 도면과 치수표에서 규격을 확인하세요. 재고·납기는 전화 주시면 바로 안내드립니다.
제품 사진

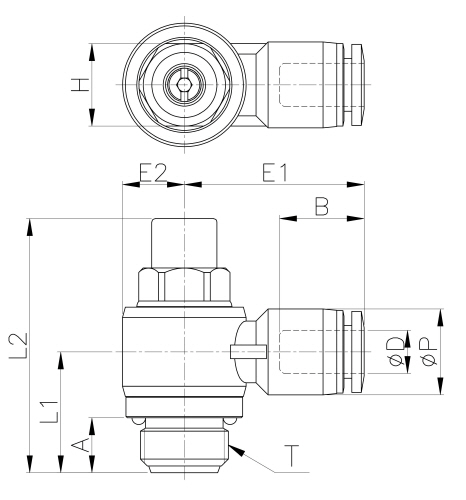

도면상세 치수표
| Model | ∅D | ∅P | T | L1 | L2 | E1 | E2 | A | B | H(Hex) | WEIGHT(g) | EA(BOX) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NSC04-G01(DC) | 4 | 10.5 | G 1/8 | 15.3 | 31.5 | 23.3 | 7.0 | 6.0 | 15.3 | 8 | 16.0 | 50 |
|
|||
| NSC04-G02(DC) | 4 | 10.5 | G 1/4 | 17.6 | 37.0 | 25.3 | 9.0 | 8.0 | 15.3 | 12 | 35.0 | 50 |
|
|||
| NSC06-G01(DC) | 6 | 12.5 | G 1/8 | 15.3 | 31.5 | 24.2 | 7.0 | 6.0 | 16.4 | 8 | 18.0 | 50 |
|
|||
| NSC06-G02(DC) | 6 | 12.5 | G 1/4 | 17.6 | 37.0 | 26.2 | 9.0 | 8.0 | 16.4 | 12 | 33.0 | 50 |
|
|||
| NSC06-G03(DC) | 6 | 12.5 | G 3/8 | 21.4 | 43.6 | 27.7 | 11.0 | 8.0 | 16.4 | 14 | 63.0 | 25 |
|
|||
| NSC06-G04(DC) | 6 | 12.5 | G 1/2 | 22.9 | 50.0 | 30.8 | 14.0 | 9.0 | 16.4 | 17 | 108.0 | 20 |
|
|||
| NSC08-G01(DC) | 8 | 14.5 | G 1/8 | 14.2 | 31.5 | 25.9 | 7.0 | 6.0 | 18.3 | 8 | 20.0 | 50 |
|
|||
| NSC08-G02(DC) | 8 | 14.5 | G 1/4 | 16.9 | 37.0 | 27.9 | 9.0 | 8.0 | 18.3 | 12 | 34.0 | 50 |
|
|||
| NSC08-G03(DC) | 8 | 14.5 | G 3/8 | 21.4 | 43.6 | 28.9 | 11.0 | 8.0 | 18.3 | 14 | 64.0 | 25 |
|
|||
| NSC08-G04(DC) | 8 | 14.5 | G 1/2 | 22.9 | 50.0 | 31.8 | 14.0 | 9.0 | 18.3 | 17 | 100.0 | 20 |
|
|||
| NSC10-G01(DC) | 10 | 17.5 | G 1/8 | 12.7 | 31.5 | 27.9 | 7.0 | 6.0 | 19.7 | 8 | 26.0 | 25 |
|
|||
| NSC10-G02(DC) | 10 | 17.5 | G 1/4 | 16.4 | 37.0 | 29.9 | 9.0 | 8.0 | 19.7 | 12 | 38.0 | 25 |
|
|||
| NSC10-G03(DC) | 10 | 17.5 | G 3/8 | 20.1 | 43.6 | 31.0 | 11.2 | 8.0 | 19.7 | 14 | 63.0 | 25 |
|
|||
| NSC10-G04(DC) | 10 | 17.5 | G 1/2 | 22.9 | 50.0 | 33.4 | 14.0 | 9.0 | 19.7 | 17 | 103.0 | 20 |
|
|||
| NSC12-G02(DC) | 12 | 20.5 | G 1/4 | 14.9 | 37.0 | 33.3 | 9.0 | 8.0 | 22.4 | 12 | 42.0 | 25 |
|
|||
| NSC12-G03(DC) | 12 | 20.5 | G 3/8 | 19.3 | 43.6 | 33.7 | 11.5 | 8.0 | 21.9 | 14 | 65.0 | 25 |
|
|||
| NSC12-G04(DC) | 12 | 20.5 | G 1/2 | 21.6 | 50.0 | 36.1 | 14.0 | 9.0 | 21.9 | 17 | 104.0 | 20 |
|
|||
