CDC첨단 (씨디씨뉴매틱)
PLLP
원터치 피팅 · CDC 정품 — 아래 도면과 치수표에서 규격을 확인하세요. 재고·납기는 전화 주시면 바로 안내드립니다.
제품 사진

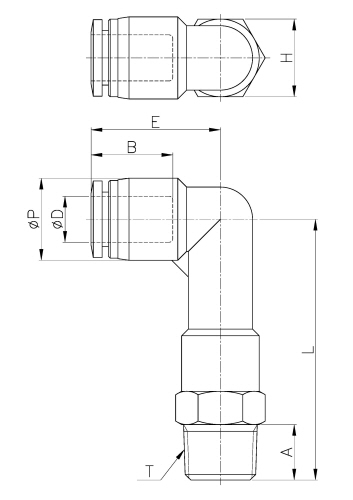

도면상세 치수표
| Model | ∅D | ∅P | T | L | E | A | B | H(Hex) | ORIFICE | WEIGHT(g) | BOX(EA) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PLLP 04-M5 | 4 | 10.5 | M5*0.8p | 32.5 | 18.5 | 4.0 | 14.8 | 10 | 2.5 | 5.6 | 50 |
|
|||
| PLLP 04-M6 | 4 | 10.5 | M6*1.0p | 32.6 | 18.5 | 4.1 | 14.8 | 10 | 3.0 | 8.0 | 50 |
|
|||
| PLLP 04-01 | 4 | 10.5 | R 1/8 | 36.5 | 18.5 | 8.0 | 14.8 | 10 | 3.0 | 9.9 | 50 |
|
|||
| PLLP 04-02 | 4 | 10.5 | R 1/4 | 38.5 | 18.5 | 10.0 | 14.8 | 14 | 3.0 | 14.9 | 50 |
|
|||
| PLLP 04-03 | 4 | 10.5 | R 3/8 | 39.5 | 18.5 | 11.0 | 14.8 | 17 | 3.0 | 23.7 | 50 |
|
|||
| PLLP 06-M5 | 6 | 12.5 | M5*0.8p | 36.5 | 20.3 | 4.0 | 16.4 | 12 | 2.5 | 7.1 | 50 |
|
|||
| PLLP 06-M6 | 6 | 12.5 | M6*1.0p | 36.6 | 20.3 | 4.1 | 16.4 | 12 | 3.0 | 11.8 | 50 |
|
|||
| PLLP 06-01 | 6 | 12.5 | R 1/8 | 40.5 | 20.3 | 8.0 | 16.4 | 12 | 4.0 | 13.8 | 50 |
|
|||
| PLLP 06-02 | 6 | 12.5 | R 1/4 | 43.5 | 20.3 | 10.0 | 16.4 | 14 | 4.0 | 18.9 | 50 |
|
|||
| PLLP 06-03 | 6 | 12.5 | R 3/8 | 44.5 | 20.3 | 11.0 | 16.4 | 17 | 4.0 | 26.1 | 50 |
|
|||
| PLLP 06-04 | 6 | 12.5 | R 1/2 | 47.5 | 20.3 | 14.0 | 16.4 | 21 | 4.0 | 40.3 | 25 |
|
|||
| PLLP 08-01 | 8 | 14.8 | R 1/8 | 44.0 | 22.9 | 8.0 | 18.3 | 14 | 6.0 | 18.0 | 50 |
|
|||
| PLLP 08-02 | 8 | 14.8 | R 1/4 | 47.0 | 22.9 | 10.0 | 18.3 | 14 | 6.0 | 20.9 | 50 |
|
|||
| PLLP 08-03 | 8 | 14.8 | R 3/8 | 48.0 | 22.9 | 11.0 | 18.3 | 17 | 6.0 | 27.7 | 25 |
|
|||
| PLLP 08-04 | 8 | 14.8 | R 1/2 | 51.0 | 22.9 | 14.0 | 18.3 | 21 | 6.0 | 42.7 | 25 |
|
|||
| PLLP 10-01 | 10 | 17.5 | R 1/8 | 47.5 | 24.6 | 8.0 | 20.2 | 17 | 6.0 | 27.7 | 25 |
|
|||
| PLLP 10-02 | 10 | 17.5 | R 1/4 | 50.5 | 24.6 | 10.0 | 20.2 | 17 | 8.0 | 29.6 | 25 |
|
|||
| PLLP 10-03 | 10 | 17.5 | R 3/8 | 51.5 | 24.6 | 11.0 | 20.2 | 17 | 8.0 | 31.7 | 25 |
|
|||
| PLLP 10-04 | 10 | 17.5 | R 1/2 | 54.5 | 24.6 | 14.0 | 20.2 | 22 | 8.0 | 50.5 | 25 |
|
|||
| PLLP 12-01 | 12 | 20.5 | R 1/8 | 54.4 | 28.7 | 8.0 | 22.9 | 19 | 6.0 | 42.1 | 25 |
|
|||
| PLLP 12-02 | 12 | 20.5 | R 1/4 | 56.4 | 28.7 | 10.0 | 22.9 | 19 | 9.0 | 38.3 | 25 |
|
|||
| PLLP 12-03 | 12 | 20.5 | R 3/8 | 57.4 | 28.7 | 11.0 | 22.9 | 19 | 10.0 | 42.0 | 25 |
|
|||
| PLLP 12-04 | 12 | 20.5 | R 1/2 | 60.4 | 28.7 | 14.0 | 22.9 | 21 | 10.0 | 51.4 | 25 |
|
|||
