CDC첨단 (씨디씨뉴매틱)
HVF
핸드 밸브 · CDC 정품 — 아래 도면과 치수표에서 규격을 확인하세요. 재고·납기는 전화 주시면 바로 안내드립니다.
제품 사진

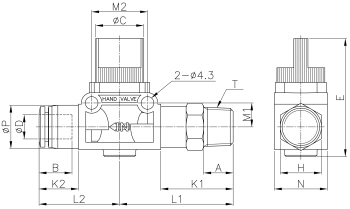

도면상세 치수표
| Model | T | ∅D | H(Hex) | ∅P | ∅C | N | E | A | B | K1 | K2 | L1 | L2 | M1 | M2 | WEIGHT(g) | BOX(EA) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HVF01-04 | Rc 1/8 | 4 | 14 | 10.5 | 16.3 | 18.0 | 40.3 | 8.0 | 14.8 | 21.6 | 11.1 | 35.6 | 25.1 | 8.2 | 19.0 | 33.0 | 25 |
|
|||
| HVF02-04 | Rc 1/4 | 4 | 14 | 10.5 | 16.3 | 18.0 | 40.3 | 10.0 | 14.8 | 24.6 | 11.1 | 38.6 | 25.1 | 8.2 | 19.0 | 36.1 | 25 |
|
|||
| HVF03-04 | R 3/8 | 4 | 17 | 10.5 | 16.3 | 18.0 | 40.3 | 11.0 | 14.8 | 25.6 | 11.1 | 39.6 | 25.1 | 8.2 | 19.0 | 41.3 | 25 |
|
|||
| HVF01-06 | R 1/8 | 6 | 14 | 12.5 | 16.3 | 18.0 | 40.3 | 8.0 | 16.4 | 21.6 | 12.3 | 35.6 | 26.3 | 8.2 | 19.0 | 37.0 | 25 |
|
|||
| HVF02-06 | R 1/4 | 6 | 14 | 12.5 | 16.3 | 18.0 | 40.3 | 10.0 | 16.4 | 24.6 | 12.3 | 38.6 | 26.3 | 8.2 | 19.0 | 37.0 | 25 |
|
|||
| HVF03-06 | R 3/8 | 6 | 17 | 12.5 | 16.3 | 18.0 | 40.3 | 11.0 | 16.4 | 25.6 | 12.3 | 39.6 | 26.3 | 8.2 | 19.0 | 47.0 | 25 |
|
|||
| HVF01-08 | R 1/8 | 8 | 14 | 14.8 | 16.3 | 18.0 | 40.3 | 8.0 | 18.7 | 21.6 | 13.9 | 35.6 | 27.9 | 8.2 | 19.0 | 35.0 | 25 |
|
|||
| HVF02-08 | R 1/4 | 8 | 14 | 14.8 | 16.3 | 18.0 | 40.3 | 10.0 | 18.7 | 24.6 | 13.9 | 38.6 | 27.9 | 8.2 | 19.0 | 41.0 | 25 |
|
|||
| HVF03-08 | R 3/8 | 8 | 17 | 14.8 | 16.3 | 18.0 | 40.3 | 11.0 | 18.7 | 25.6 | 13.9 | 39.6 | 27.9 | 8.2 | 19.0 | 48.0 | 25 |
|
|||
| HVF02-10 | R 1/4 | 10 | 17 | 17.5 | 19.3 | 21.2 | 40.5 | 10.0 | 20.1 | 23.0 | 14.4 | 39.5 | 30.9 | 10.9 | 24.0 | 58.0 | 20 |
|
|||
| HVF03-10 | R 3/8 | 10 | 17 | 17.5 | 19.3 | 21.2 | 40.5 | 11.0 | 20.1 | 24.0 | 14.4 | 40.5 | 30.9 | 10.9 | 24.0 | 61.0 | 20 |
|
|||
| HVF04-10 | R 1/2 | 10 | 21 | 17.5 | 19.3 | 21.2 | 40.5 | 14.0 | 20.1 | 27.0 | 14.4 | 43.5 | 30.9 | 10.9 | 24.0 | 82.0 | 20 |
|
|||
| HVF02-12 | R 1/4 | 12 | 19 | 20.5 | 19.3 | 21.2 | 40.5 | 10.0 | 22.8 | 24.6 | 17.6 | 41.1 | 34.1 | 10.9 | 24.0 | 69.0 | 20 |
|
|||
| HVF03-12 | R 3/8 | 12 | 19 | 20.5 | 19.3 | 21.2 | 40.5 | 11.0 | 22.8 | 25.6 | 17.6 | 42.1 | 34.1 | 10.9 | 24.0 | 68.0 | 20 |
|
|||
| HVF04-12 | R 1/2 | 12 | 21 | 20.5 | 19.3 | 21.2 | 40.5 | 14.0 | 22.8 | 28.6 | 17.6 | 45.1 | 34.1 | 10.9 | 24.0 | 76.0 | 20 |
|
|||
