CDC첨단 (씨디씨뉴매틱)
POC
원터치 피팅 · CDC 정품 — 아래 도면과 치수표에서 규격을 확인하세요. 재고·납기는 전화 주시면 바로 안내드립니다.
제품 사진

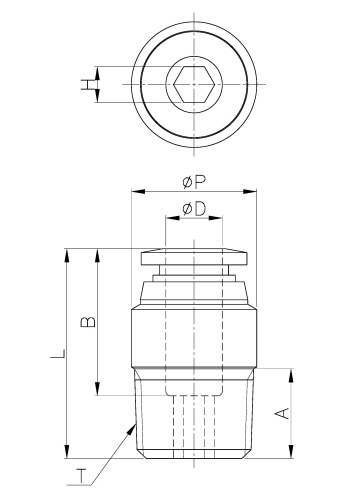

도면상세 치수표
| Model | ∅D | ∅P | T | L | A | B | H(Hex) | ORIFICE | WEIGHT(g) | BOX(EA) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| POC04-M5 | 4 | 10.0 | M5*0.8p | 20.9 | 4.0 | 14.8 | 2 | 2.0 | 6.0 | 100 |
|
|||
| POC04-M6 | 4 | 10.0 | M6*1.0p | 21.3 | 4.6 | 14.8 | 3 | 3.0 | 6.0 | 100 |
|
|||
| POC04-01 | 4 | 10.0 | R 1/8 | 20.8 | 8.0 | 14.8 | 3 | 3.0 | 8.0 | 100 |
|
|||
| POC04-02 | 4 | 14.0 | R 1/4 | 20.8 | 10.0 | 14.8 | 3 | 3.0 | 15.0 | 100 |
|
|||
| POC04-03 | 4 | 17.0 | R 3/8 | 20.8 | 11.0 | 14.8 | 3 | 3.0 | 24.0 | 100 |
|
|||
| POC06-M5 | 6 | 12.0 | M5*0.8p | 23.1 | 4.0 | 16.4 | 2 | 2.0 | 8.0 | 100 |
|
|||
| POC06-M6 | 6 | 12.0 | M6*1.0p | 23.5 | 4.6 | 16.4 | 3 | 3.0 | 8.0 | 100 |
|
|||
| POC06-01 | 6 | 12.0 | R 1/8 | 22.7 | 8.0 | 16.4 | 4 | 4.0 | 9.0 | 100 |
|
|||
| POC06-02 | 6 | 14.0 | R 1/4 | 23.4 | 10.0 | 16.4 | 4 | 4.0 | 15.0 | 100 |
|
|||
| POC06-03 | 6 | 17.0 | R 3/8 | 23.4 | 11.0 | 16.4 | 4 | 4.0 | 25.0 | 100 |
|
|||
| POC08-01 | 8 | 14.0 | R 1/8 | 27.9 | 8.0 | 18.4 | 5 | 5.0 | 14.0 | 100 |
|
|||
| POC08-02 | 8 | 14.0 | R 1/4 | 25.9 | 10.0 | 18.4 | 6 | 6.0 | 14.0 | 100 |
|
|||
| POC08-03 | 8 | 17.0 | R 3/8 | 25.9 | 11.0 | 18.4 | 6 | 6.0 | 25.0 | 100 |
|
|||
| POC08-04 | 8 | 21.0 | R 1/2 | 27.3 | 14.0 | 18.4 | 6 | 6.0 | 46.0 | 50 |
|
|||
| POC10-01 | 10 | 17.0 | R 1/8 | 29.9 | 8.0 | 19.7 | 5 | 5.0 | 19.0 | 100 |
|
|||
| POC10-02 | 10 | 17.0 | R 1/4 | 27.8 | 10.0 | 19.7 | 6 | 6.0 | 17.0 | 100 |
|
|||
| POC10-03 | 10 | 17.0 | R 3/8 | 27.8 | 11.0 | 19.7 | 8 | 8.0 | 22.0 | 100 |
|
|||
| POC10-04 | 10 | 21.0 | R 1/2 | 27.8 | 14.0 | 19.7 | 8 | 8.0 | 40.0 | 50 |
|
|||
| POC12-01 | 12 | 19.0 | R 1/8 | 32.2 | 8.0 | 21.9 | 5 | 5.0 | 24.0 | 50 |
|
|||
| POC12-02 | 12 | 19.0 | R 1/4 | 33.8 | 10.0 | 21.9 | 6 | 6.0 | 26.0 | 50 |
|
|||
| POC12-03 | 12 | 19.0 | R 3/8 | 31.7 | 11.0 | 21.9 | 8 | 8.0 | 26.0 | 50 |
|
|||
| POC12-04 | 12 | 21.0 | R 1/2 | 30.2 | 14.0 | 21.9 | 8 | 8.0 | 40.0 | 50 |
|
|||
