CDC첨단 (씨디씨뉴매틱)
PHL(2)
원터치 피팅 · CDC 정품 — 아래 도면과 치수표에서 규격을 확인하세요. 재고·납기는 전화 주시면 바로 안내드립니다.
제품 사진

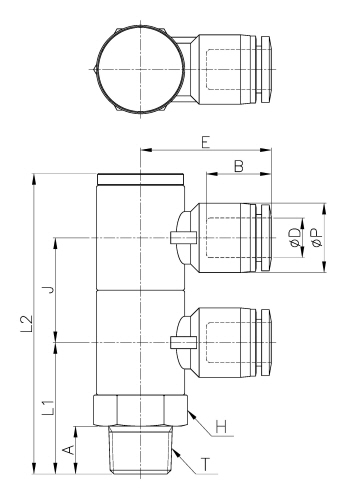

도면상세 치수표
| Model | ∅D | ∅P | T | L1 | L2 | E | A | B | J | H(Hex) | ORIFICE | WEIGHT(g) | BOX(EA) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PHL04-01(2) | 4 | 10.5 | R 1/8 | 22.5 | 51.8 | 23.3 | 8.0 | 14.8 | 17.9 | 14 | 3.2 | 37.0 | 25 |
|
|||
| PHL04-02(2) | 4 | 10.5 | R 1/4 | 27.5 | 62.8 | 25.1 | 10.0 | 14.8 | 21.9 | 17 | 3.2 | 59.0 | 25 |
|
|||
| PHL04-03(2) | 4 | 10.5 | R 3/8 | 29.0 | 64.8 | 27.0 | 11.0 | 14.8 | 21.9 | 21 | 3.2 | 92.0 | 25 |
|
|||
| PHL04-04(2) | 4 | 10.5 | R 1/2 | 34.1 | 73.4 | 29.0 | 14.0 | 14.8 | 23.9 | 24 | 3.2 | 135.0 | 20 |
|
|||
| PHL06-01(2) | 6 | 12.5 | R 1/8 | 22.5 | 51.8 | 24.1 | 8.0 | 16.4 | 17.9 | 14 | 4.0 | 38.0 | 25 |
|
|||
| PHL06-02(2) | 6 | 12.5 | R 1/4 | 27.5 | 62.8 | 26.0 | 10.0 | 16.4 | 21.9 | 17 | 5.0 | 61.0 | 25 |
|
|||
| PHL06-03(2) | 6 | 12.5 | R 3/8 | 29.0 | 64.8 | 27.9 | 11.0 | 16.4 | 21.9 | 21 | 5.0 | 93.0 | 25 |
|
|||
| PHL06-04(2) | 6 | 12.5 | R 1/2 | 34.1 | 73.4 | 29.3 | 14.0 | 16.4 | 23.9 | 24 | 5.0 | 137.0 | 20 |
|
|||
| PHL08-01(2) | 8 | 14.5 | R 1/8 | 22.5 | 51.8 | 25.6 | 8.0 | 18.3 | 17.9 | 14 | 5.0 | 40.0 | 25 |
|
|||
| PHL08-02(2) | 8 | 14.5 | R 1/4 | 27.5 | 62.8 | 27.4 | 10.0 | 18.3 | 21.9 | 17 | 7.0 | 62.0 | 25 |
|
|||
| PHL08-03(2) | 8 | 14.5 | R 3/8 | 29.0 | 64.8 | 29.3 | 11.0 | 18.3 | 21.9 | 21 | 7.0 | 94.0 | 20 |
|
|||
| PHL08-04(2) | 8 | 14.5 | R 1/2 | 34.1 | 73.4 | 30.7 | 14.0 | 18.3 | 23.9 | 24 | 7.0 | 138.0 | 12 |
|
|||
| PHL10-01(2) | 10 | 17.5 | R 1/8 | 22.5 | 51.8 | 28.1 | 8.0 | 20.2 | 17.9 | 14 | 5.0 | 44.0 | 25 |
|
|||
| PHL10-02(2) | 10 | 17.5 | R 1/4 | 27.5 | 62.8 | 29.8 | 10.0 | 20.2 | 21.9 | 17 | 8.0 | 66.0 | 25 |
|
|||
| PHL10-03(2) | 10 | 17.5 | R 3/8 | 29.0 | 64.8 | 31.9 | 11.0 | 20.2 | 21.9 | 21 | 8.0 | 99.0 | 20 |
|
|||
| PHL10-04(2) | 10 | 17.5 | R 1/2 | 34.1 | 73.4 | 33.7 | 14.0 | 20.2 | 23.9 | 24 | 8.0 | 142.0 | 12 |
|
|||
| PHL12-02(2) | 12 | 20.5 | R 1/4 | 27.5 | 62.8 | 33.0 | 10.0 | 22.9 | 21.9 | 17 | 8.0 | 72.0 | 9 |
|
|||
| PHL12-03(2) | 12 | 20.5 | R 3/8 | 29.0 | 64.8 | 35.1 | 11.0 | 22.9 | 21.9 | 21 | 8.0 | 105.0 | 9 |
|
|||
| PHL12-04(2) | 12 | 20.5 | R 1/2 | 34.1 | 73.4 | 37.4 | 14.0 | 22.9 | 23.9 | 24 | 8.0 | 149.0 | 9 |
|
|||
