CDC첨단 (씨디씨뉴매틱)
PHL(3)
원터치 피팅 · CDC 정품 — 아래 도면과 치수표에서 규격을 확인하세요. 재고·납기는 전화 주시면 바로 안내드립니다.
제품 사진

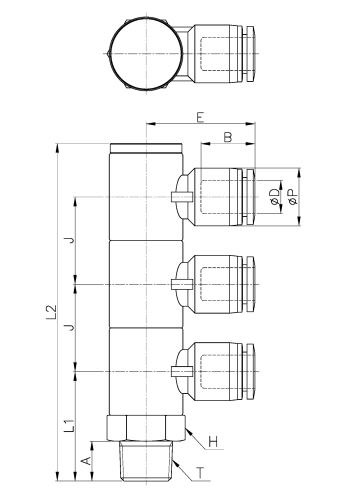

도면상세 치수표
| Model | ∅D | ∅P | T | L1 | L2 | E | A | B | J | H(Hex) | ORIFICE | WEIGHT(g) | BOX(EA) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PHL04-01(3) | 4 | 10.5 | R 1/8 | 22.5 | 69.7 | 23.3 | 8.0 | 14.8 | 17.9 | 14 | 3.2 | 48.0 | 25 |
|
|||
| PHL04-02(3) | 4 | 10.5 | R 1/4 | 27.5 | 84.7 | 25.1 | 10.0 | 14.8 | 21.9 | 17 | 3.2 | 76.0 | 25 |
|
|||
| PHL04-03(3) | 4 | 10.5 | R 3/8 | 29.0 | 86.7 | 27.0 | 11.0 | 14.8 | 21.9 | 21 | 3.2 | 117.0 | 25 |
|
|||
| PHL04-04(3) | 4 | 10.5 | R 1/2 | 34.1 | 97.3 | 29.0 | 14.0 | 14.8 | 23.9 | 24 | 3.2 | 174.0 | 12 |
|
|||
| PHL06-01(3) | 6 | 12.5 | R 1/8 | 22.5 | 69.7 | 24.1 | 8.0 | 16.4 | 17.9 | 14 | 4.0 | 50.0 | 25 |
|
|||
| PHL06-02(3) | 6 | 12.5 | R 1/4 | 27.5 | 84.7 | 26.0 | 10.0 | 16.4 | 21.9 | 17 | 5.0 | 79.0 | 25 |
|
|||
| PHL06-03(3) | 6 | 12.5 | R 3/8 | 29.0 | 86.7 | 27.9 | 11.0 | 16.4 | 21.9 | 21 | 5.0 | 115.0 | 20 |
|
|||
| PHL06-04(3) | 6 | 12.5 | R 1/2 | 34.1 | 97.3 | 29.3 | 14.0 | 16.4 | 23.9 | 24 | 5.0 | 176.0 | 12 |
|
|||
| PHL08-01(3) | 8 | 14.5 | R 1/8 | 22.5 | 69.7 | 25.6 | 8.0 | 18.3 | 17.9 | 14 | 5.0 | 53.0 | 25 |
|
|||
| PHL08-02(3) | 8 | 14.5 | R 1/4 | 27.5 | 84.7 | 27.4 | 10.0 | 18.3 | 21.9 | 17 | 7.0 | 86.0 | 15 |
|
|||
| PHL08-03(3) | 8 | 14.5 | R 3/8 | 29.0 | 86.7 | 29.3 | 11.0 | 18.3 | 21.9 | 21 | 7.0 | 121.0 | 15 |
|
|||
| PHL08-04(3) | 8 | 14.5 | R 1/2 | 34.1 | 97.3 | 30.7 | 14.0 | 18.3 | 23.9 | 24 | 7.0 | 177.0 | 12 |
|
|||
| PHL10-01(3) | 10 | 17.5 | R 1/8 | 22.5 | 69.7 | 28.1 | 8.0 | 20.2 | 17.9 | 14 | 5.0 | 59.0 | 12 |
|
|||
| PHL10-02(3) | 10 | 17.5 | R 1/4 | 27.5 | 84.7 | 29.8 | 10.0 | 20.2 | 21.9 | 17 | 8.0 | 87.0 | 12 |
|
|||
| PHL10-03(3) | 10 | 17.5 | R 3/8 | 29.0 | 86.7 | 31.9 | 11.0 | 20.2 | 21.9 | 21 | 8.0 | 128.0 | 12 |
|
|||
| PHL10-04(3) | 10 | 17.5 | R 1/2 | 34.1 | 97.3 | 33.7 | 14.0 | 20.2 | 23.9 | 24 | 8.0 | 184.0 | 12 |
|
|||
| PHL12-02(3) | 12 | 20.5 | R 1/4 | 27.5 | 84.7 | 33.0 | 10.0 | 22.9 | 21.9 | 17 | 8.0 | 98.0 | 8 |
|
|||
| PHL12-03(3) | 12 | 20.5 | R 3/8 | 29.0 | 86.7 | 35.1 | 11.0 | 22.9 | 21.9 | 21 | 8.0 | 137.0 | 8 |
|
|||
| PHL12-04(3) | 12 | 20.5 | R 1/2 | 34.1 | 97.3 | 37.4 | 14.0 | 22.9 | 23.9 | 24 | 8.0 | 194.0 | 8 |
|
|||
