CDC첨단 (씨디씨뉴매틱)
PL-G
원터치 피팅 · CDC 정품 — 아래 도면과 치수표에서 규격을 확인하세요. 재고·납기는 전화 주시면 바로 안내드립니다.
제품 사진

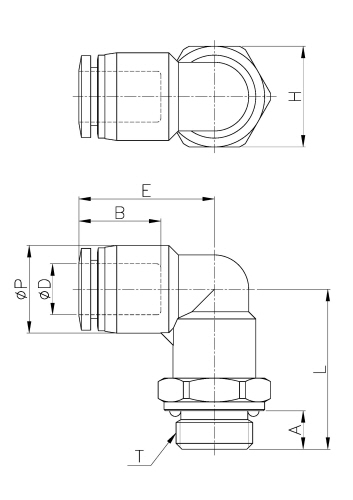

도면상세 치수표
| Model | ∅D | ∅P | T | L | E | A | B | H(Hex) | ORIFICE | WEIGHT(g) | EA(BOX) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PL04-G01 | 4 | 10.5 | G 1/8 | 21.5 | 18.5 | 5.0 | 14.8 | 14 | 3.0 | 13.0 | 100 |
|
|||
| PL04-G02 | 4 | 10.5 | G 1/4 | 23.5 | 18.5 | 6.5 | 14.8 | 17 | 3.0 | 17.0 | 100 |
|
|||
| PL04-G03 | 4 | 10.5 | G 3/8 | 23.0 | 18.5 | 6.5 | 14.8 | 20 | 3.0 | 22.0 | 50 |
|
|||
| PL06-G01 | 6 | 12.5 | G 1/8 | 23.5 | 20.3 | 5.0 | 16.4 | 14 | 4.0 | 15.0 | 100 |
|
|||
| PL06-G02 | 6 | 12.5 | G 1/4 | 25.5 | 20.3 | 6.5 | 16.4 | 17 | 4.0 | 18.0 | 100 |
|
|||
| PL06-G03 | 6 | 12.5 | G 3/8 | 25.0 | 20.3 | 6.5 | 16.4 | 20 | 4.0 | 25.0 | 50 |
|
|||
| PL08-G01 | 8 | 14.8 | G 1/8 | 25.0 | 22.9 | 5.0 | 18.3 | 14 | 6.0 | 16.0 | 50 |
|
|||
| PL08-G02 | 8 | 14.8 | G 1/4 | 27.0 | 22.9 | 6.5 | 18.3 | 17 | 6.0 | 21.0 | 50 |
|
|||
| PL08-G03 | 8 | 14.8 | G 3/8 | 26.5 | 22.9 | 6.5 | 18.3 | 20 | 6.0 | 25.0 | 50 |
|
|||
| PL08-G04 | 8 | 14.8 | G 1/2 | 28.0 | 22.9 | 8.0 | 18.3 | 24 | 6.0 | 37.0 | 50 |
|
|||
| PL10-G01 | 10 | 17.5 | G 1/8 | 25.5 | 24.6 | 5.0 | 20.2 | 17 | 6.0 | 23.0 | 50 |
|
|||
| PL10-G02 | 10 | 17.5 | G 1/4 | 27.5 | 24.6 | 6.5 | 20.2 | 17 | 6.0 | 24.0 | 50 |
|
|||
| PL10-G03 | 10 | 17.5 | G 3/8 | 27.0 | 24.6 | 6.5 | 20.2 | 20 | 6.0 | 28.0 | 50 |
|
|||
| PL10-G04 | 10 | 17.5 | G 1/2 | 28.5 | 24.6 | 8.0 | 20.2 | 24 | 6.0 | 42.0 | 25 |
|
|||
| PL12-G02 | 12 | 20.5 | G 1/4 | 30.4 | 28.7 | 6.5 | 22.9 | 19 | 8.0 | 36.0 | 25 |
|
|||
| PL12-G03 | 12 | 20.5 | G 3/8 | 29.9 | 28.7 | 6.5 | 22.9 | 20 | 10.0 | 38.0 | 25 |
|
|||
| PL12-G04 | 12 | 20.5 | G 1/2 | 31.4 | 28.7 | 8.0 | 22.9 | 24 | 10.0 | 45.0 | 25 |
|
|||
| PL14-G03 | 14 | 23.3 | G 3/8 | 34.0 | 31.4 | 6.5 | 23.7 | 22 | 11.0 | 45.0 | 20 |
|
|||
| PL14-G04 | 14 | 23.3 | G 1/2 | 35.5 | 31.4 | 8.0 | 23.7 | 24 | 12.0 | 50.0 | 20 |
|
|||
| PL16-G03 | 16 | 25.5 | G 3/8 | 40.8 | 32.8 | 6.5 | 24.1 | 24 | 10.0 | 66.0 | 20 |
|
|||
| PL16-G04 | 16 | 25.5 | G 1/2 | 41.8 | 32.8 | 8.0 | 24.1 | 24 | 13.0 | 70.0 | 20 |
|
|||
