CDC첨단 (씨디씨뉴매틱)
PAT-G(2)
원터치 피팅 · CDC 정품 — 아래 도면과 치수표에서 규격을 확인하세요. 재고·납기는 전화 주시면 바로 안내드립니다.
제품 사진

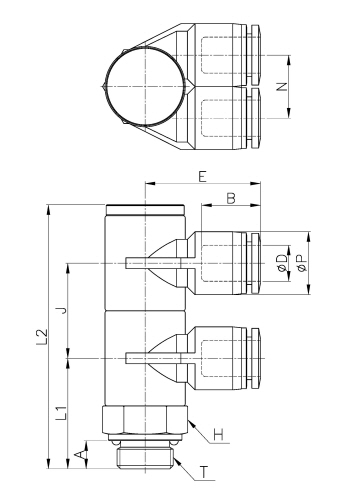

도면상세 치수표
| Model | ∅D | ∅P | T | L1 | L2 | N | E | A | B | J | H(Hex) | ORIFICE | WEIGHT(g) | EA(BOX) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PAT04-G01(2) | 4 | 10.5 | G 1/8 | 20.5 | 49.8 | 10.5 | 21.4 | 5.0 | 14.8 | 17.9 | 14 | 3.2 | 40.0 | 25 |
|
|||
| PAT04-G02(2) | 4 | 10.5 | G 1/4 | 25.5 | 60.8 | 10.5 | 22.9 | 6.5 | 14.8 | 21.9 | 17 | 3.2 | 62.0 | 25 |
|
|||
| PAT04-G03(2) | 4 | 10.5 | G 3/8 | 26.0 | 61.8 | 10.5 | 26.1 | 6.5 | 14.8 | 21.9 | 21 | 3.2 | 95.0 | 16 |
|
|||
| PAT04-G04(2) | 4 | 10.5 | G 1/2 | 29.6 | 68.9 | 10.5 | 27.7 | 8.0 | 14.8 | 23.9 | 24 | 3.2 | 139.0 | 12 |
|
|||
| PAT06-G01(2) | 6 | 12.5 | G 1/8 | 20.5 | 49.8 | 12.5 | 22.9 | 5.0 | 16.4 | 17.9 | 14 | 4.0 | 43.0 | 25 |
|
|||
| PAT06-G02(2) | 6 | 12.5 | G 1/4 | 25.5 | 60.8 | 12.5 | 24.8 | 6.5 | 16.4 | 21.9 | 17 | 5.0 | 53.0 | 12 |
|
|||
| PAT06-G03(2) | 6 | 12.5 | G 3/8 | 26.0 | 61.8 | 12.5 | 26.6 | 6.5 | 16.4 | 21.9 | 21 | 5.0 | 97.0 | 12 |
|
|||
| PAT06-G04(2) | 6 | 12.5 | G 1/2 | 29.6 | 68.9 | 12.5 | 28.6 | 8.0 | 16.4 | 23.9 | 24 | 5.0 | 141.0 | 9 |
|
|||
| PAT08-G01(2) | 8 | 14.5 | G 1/8 | 20.5 | 49.8 | 14.5 | 24.8 | 5.0 | 18.3 | 17.9 | 14 | 5.0 | 48.0 | 16 |
|
|||
| PAT08-G02(2) | 8 | 14.5 | G 1/4 | 25.5 | 60.8 | 14.5 | 26.6 | 6.5 | 18.3 | 21.9 | 17 | 6.0 | 70.0 | 12 |
|
|||
| PAT08-G03(2) | 8 | 14.5 | G 3/8 | 26.0 | 61.8 | 14.5 | 28.2 | 6.5 | 18.3 | 21.9 | 21 | 7.0 | 103.0 | 9 |
|
|||
| PAT08-G04(2) | 8 | 14.5 | G 1/2 | 29.6 | 68.9 | 14.5 | 30.3 | 8.0 | 18.3 | 23.9 | 24 | 6.0 | 146.0 | 9 |
|
|||
| PAT10-G01(2) | 10 | 17.5 | G 1/8 | 20.5 | 49.8 | 17.5 | 26.7 | 5.0 | 20.2 | 17.9 | 14 | 5.0 | 68.0 | 12 |
|
|||
| PAT10-G02(2) | 10 | 17.5 | G 1/4 | 25.5 | 60.8 | 17.5 | 28.2 | 6.5 | 20.2 | 21.9 | 17 | 8.0 | 78.0 | 9 |
|
|||
| PAT10-G03(2) | 10 | 17.5 | G 3/8 | 26.0 | 61.8 | 17.5 | 30.2 | 6.5 | 20.2 | 21.9 | 21 | 6.0 | 110.0 | 9 |
|
|||
| PAT10-G04(2) | 10 | 17.5 | G 1/2 | 29.6 | 68.9 | 17.5 | 32.6 | 8.0 | 20.2 | 23.9 | 24 | 7.0 | 154.0 | 6 |
|
|||
| PAT12-G02(2) | 12 | 20.5 | G 1/4 | 25.5 | 60.8 | 20.5 | 31.1 | 6.5 | 22.9 | 21.9 | 17 | 8.0 | 91.0 | 9 |
|
|||
| PAT12-G03(2) | 12 | 20.5 | G 3/8 | 26.0 | 61.8 | 20.5 | 32.9 | 6.5 | 22.9 | 21.9 | 21 | 8.0 | 122.0 | 6 |
|
|||
| PAT12-G04(2) | 12 | 20.5 | G 1/2 | 29.6 | 68.9 | 20.5 | 35.2 | 8.0 | 22.9 | 23.9 | 24 | 8.0 | 167.0 | 4 |
|
|||
